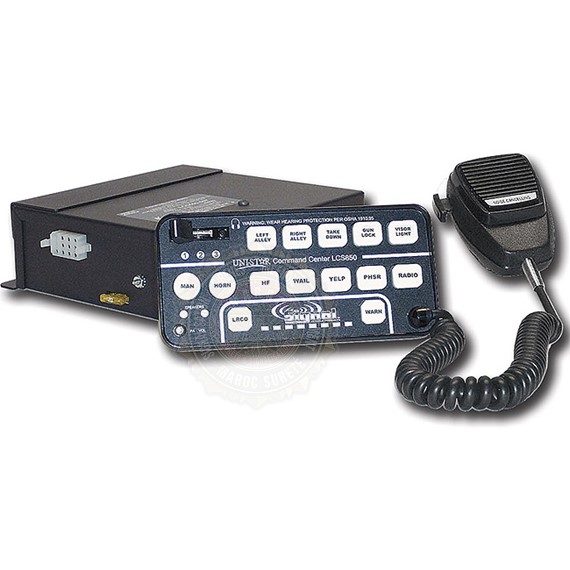

Star Warning System LCS800 - LCS800, LCS850, LCS880, & LCS881 UNISTAR COMMAND CENTER

• LED speaker diagnostics
• Wail, Yelp, Airhorn, Phaser, Manual, and Two Tone
• Self-resetting circuit protection against speaker shorts
• Integrated public address microphone
• Eight light functions
• Dual color backlighting on keypad (Amber & Red)
• Four position progressive slide switch with LED indicators
• Park Kill input
• Auxiliary input
• Positive locking wiring harness included
• Universal mounting bracket or Flange mount available
• Replaceable jumpers for option selection
• Positive and negative switching for AUX and PKILL inputs
• High and Low voltage shutdown protection
• Truck mount amplifier
• 30 Standard function replaceable labels
• Drives one or two 100 Watt speakers

Spécifications

Size:
- Control Head: 3 3/8"H X 6 3/4"W X 3/4"D
- Amplifier: 2 1/2"H X 7"W X 7 3/8"D (plus 3/4" flange)
Weight:
- LCS800 & LCS800-F (with flange) - 8.5 lbs.
- LCS850 & LCS850-F (with flange) - 9.5 lbs.
- LCS880 - 8.5 lbs.
- LCS881 - 9.5 lbs.
Output: 100 or 200 Watts (1 or 2 speakers)
Voltage: 10V - 16V DC
Frequency: 675-1633Hz
Amp Draw: 8 Amps (per speaker)
Approval: Exceeds Acoustical and environmental requirements of SAE J1849*, California Title 13 Class A* (* when used with SVP drivers)

Standard Models

LCS800-F
LCS800
LCS850-F
LCS850
LCS881
LCS880
